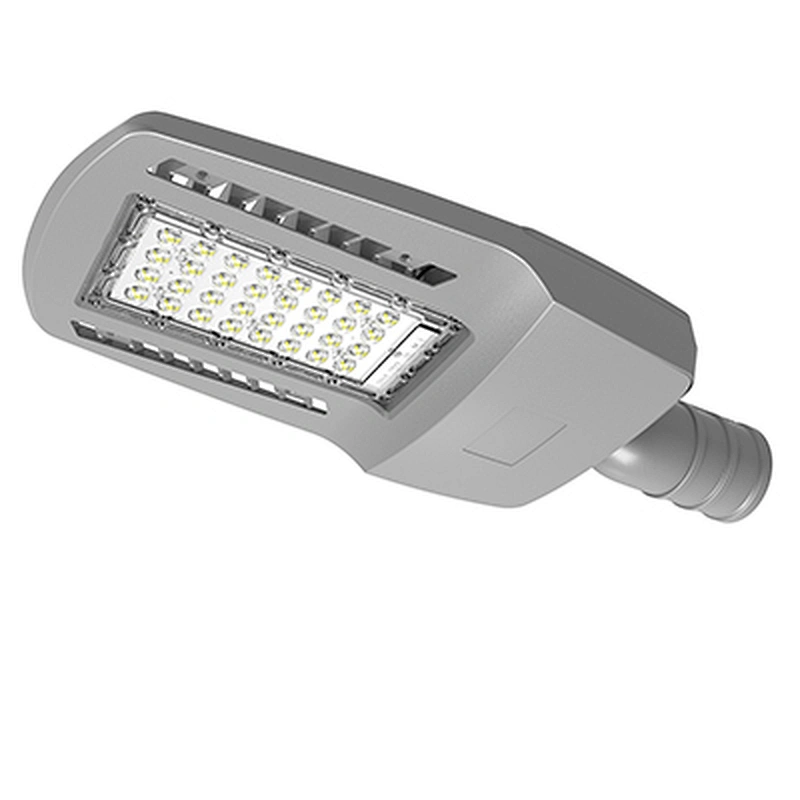

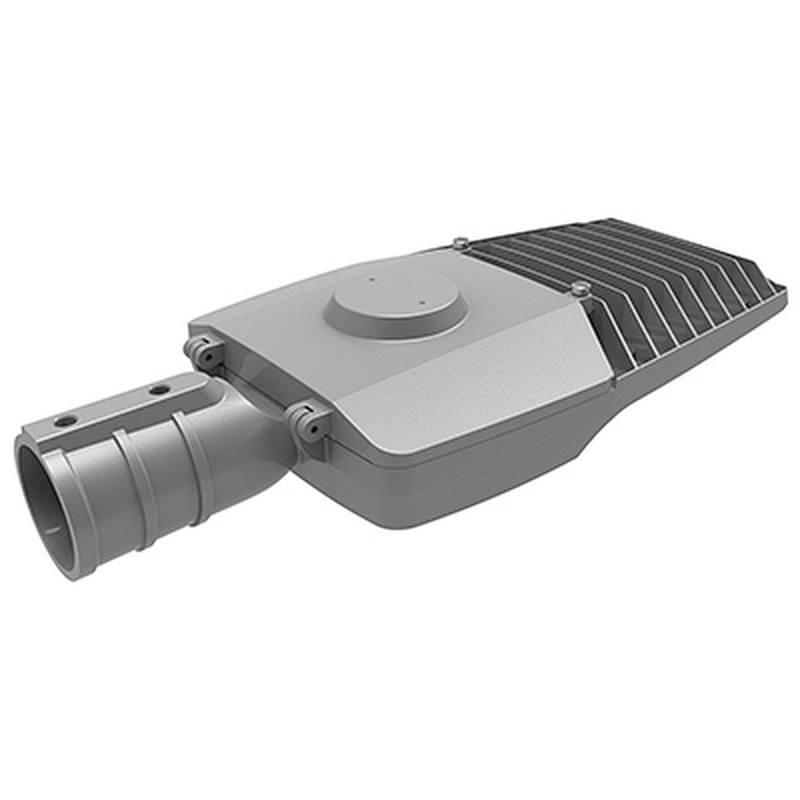

High quality die-cast aluminum alloy design housing.

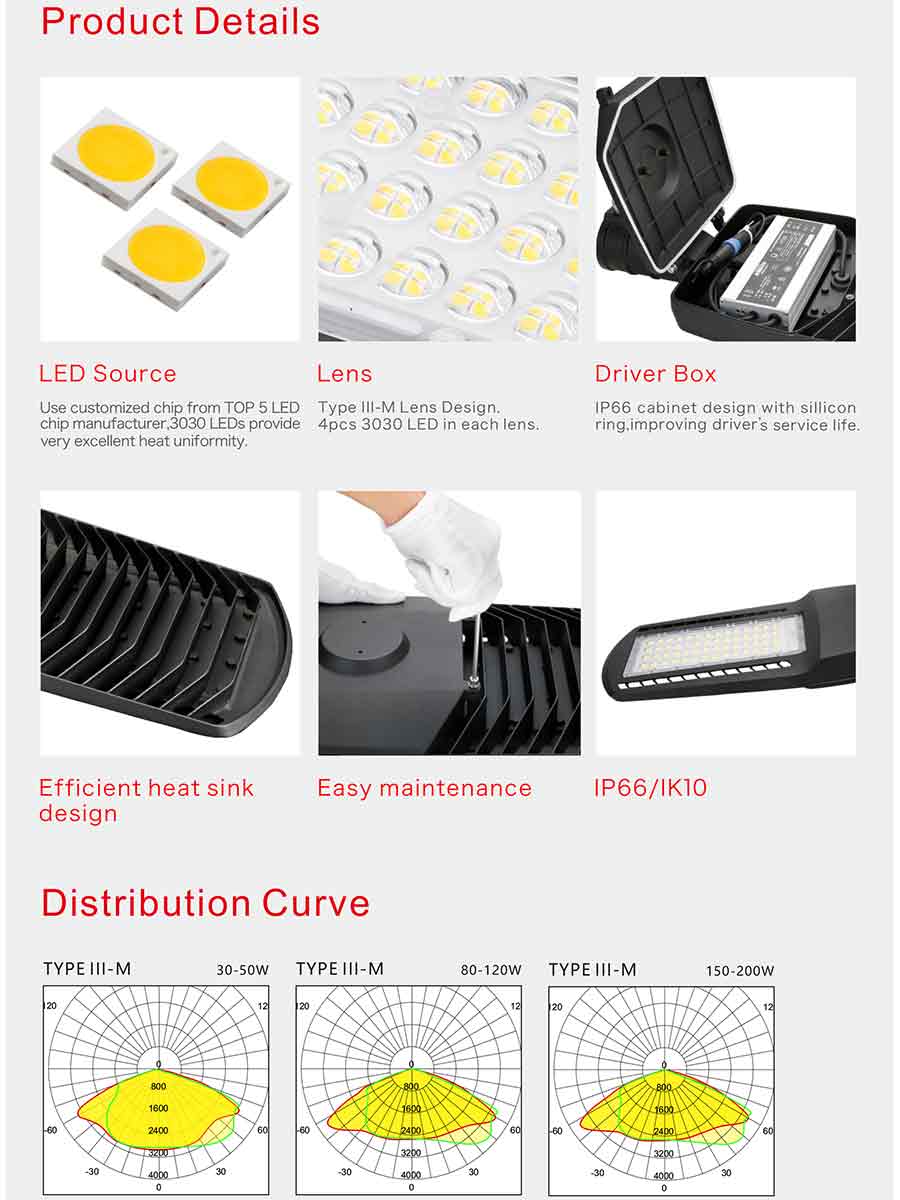

Adopt multi-chips 3030 LED with long lifespan >50,000 hours.
Lighter weight design and excellent heat dissipation by cooling fins structure.
Type III-M optical lens available for 2/3 lanes lighting.
The whole lamp reach IP66 IK10 rating.

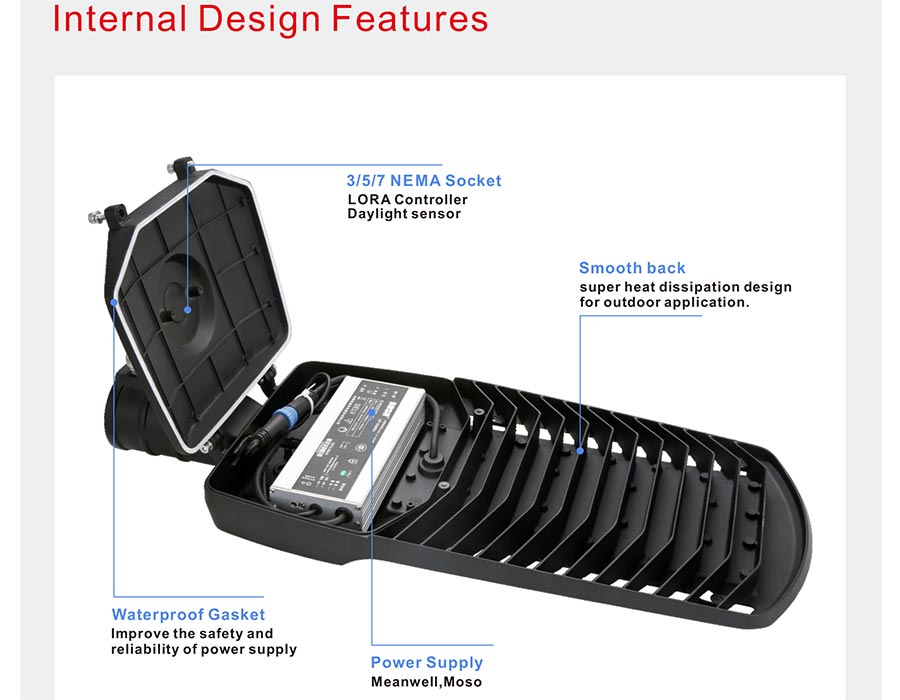

Easier maintenance design.
Dimming and smart lighting system available upon request.
The LED source get report of IEC62471,TM21,LM80.
Past CE,ROHS, IK10,IP66 tests.
5 Years warranty.
Electric Data | ||||||
Model | CS-L60-30 | CS-L60-50 | CS-L60-80 | CS-L60-120 | CS-L60-150 | CS-L60-200 |
Power | 30W | 50W | 80W | 120W | 150W | 200W |
Power Efficiency | 88% | 88% | 90% | 92% | 92% | 92% |
Power Factor | >0.95 | |||||
Power Supply | MOSO/MW/SOSEN | |||||
Working Voltage | 90-305V/249-528V AC,50/60Hz | |||||
Photometric Specifications | ||||||
LEDs | 3030 LED | |||||
CRI | >70 | |||||
Luminous Efficiency | 110-130lm/w | |||||
LEDs Qty | 36pcs | 56pcs | 80pcs | 128pcs | 176pcs | 224pcs |
Luminous Flux(±5%) | 3600lm | 6000lm | 9600lm | 14400lm | 18000lm | 24000lm |
CCT | 3000K/4000K/5000K/5500K/6000K | |||||
Beam angle | Type III-M | |||||
Mechanical Specifications | ||||||
IP/IK Rate | IP66/IK10 | |||||
Lamp Pole | Ø60mm | |||||
Working Environment | 40°C~50°C,20%~90% H.R | |||||
Storage Temperature | 40°C~85°C,10%~90% H.R. | |||||
Body Material | ADC#12 | |||||
Lens Material | PC | |||||
Dimmable | 1-10V,DALI,LORA SYSTEM | |||||
N.W.(KG) | 1.73 | 1.73 | 3.1 | 3.1 | 3.68 | 3.68 |

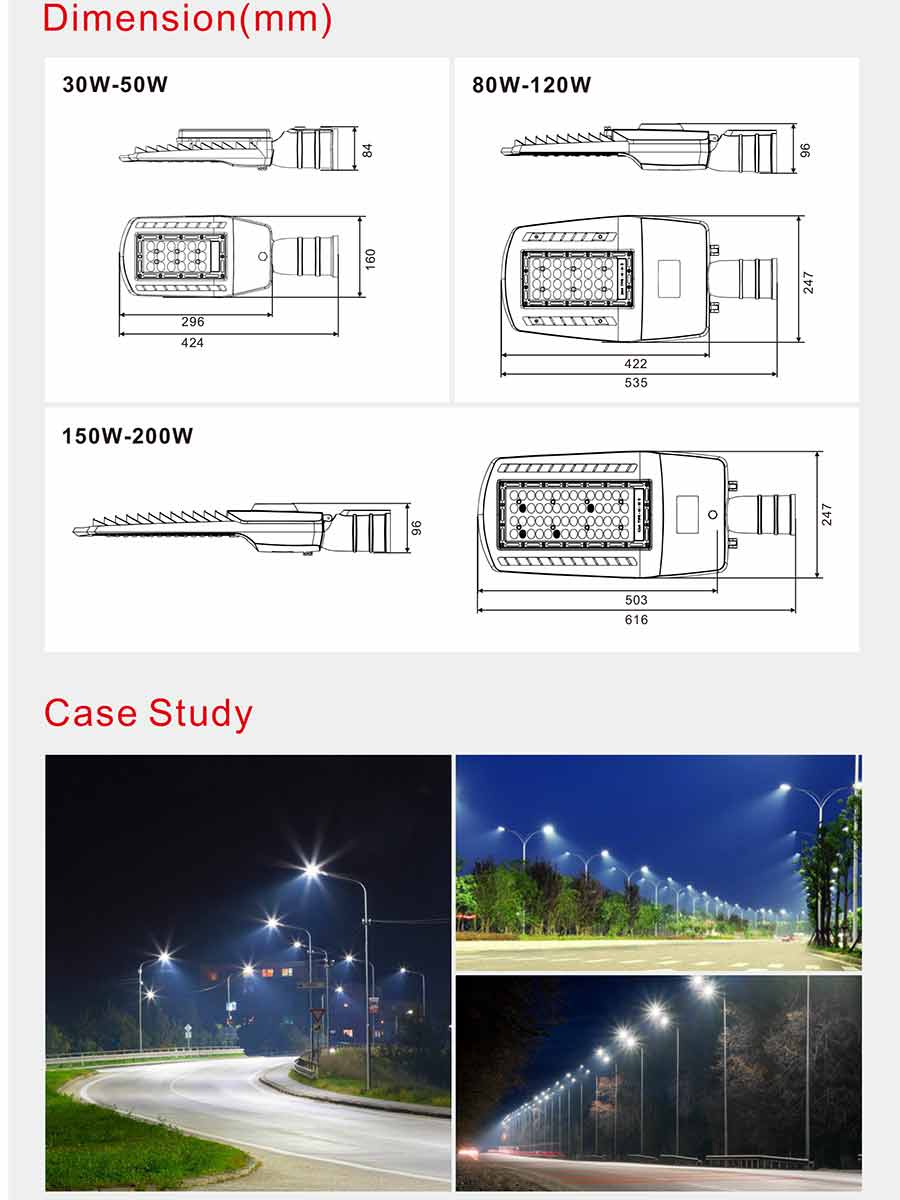

Lamp Size(mm) | 424*160*84 | 424*160*84 | 535*247*96 | 535*247*96 | 616*247*96 | 616*247*96 |
Lifespan | >50,000 Hours (Ta=30°C@L70) | |||||
Warranty | 5 Years | |||||
Working Temperature | -40℃-50℃， 20%-90% H.R | |||||
Storage Temperature | -40℃-85℃， 10%-90% H.R | |||||
