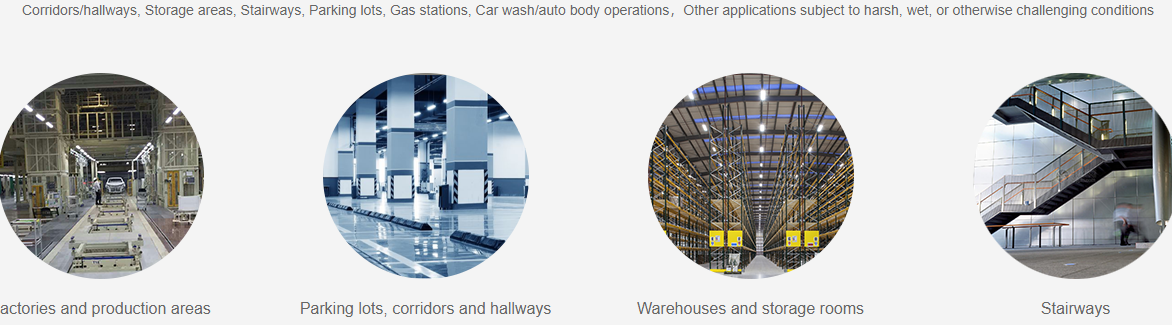

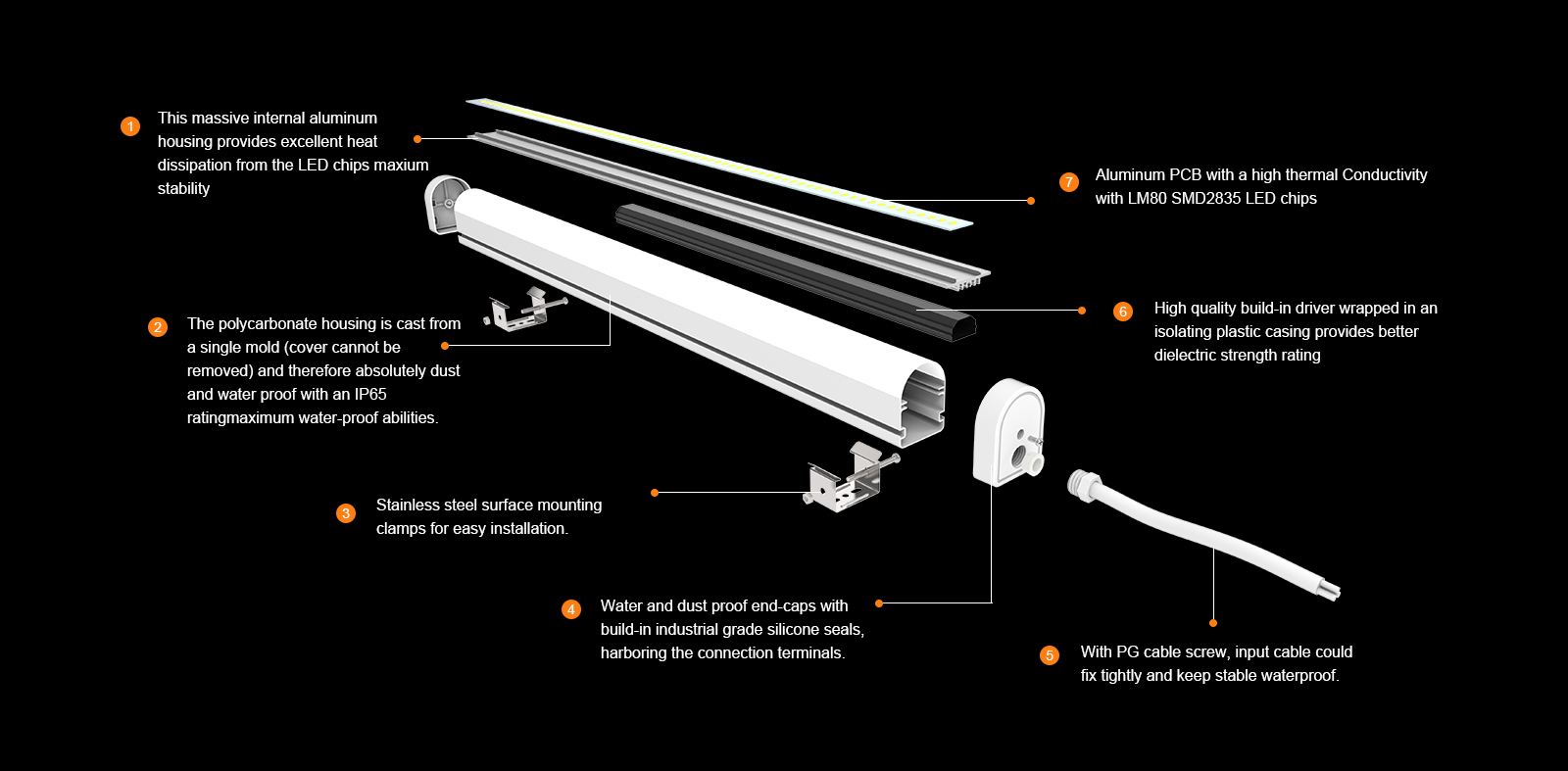

The T58 is a highly durable and robust water-proof and dustproof light. The light distributiondesigned for industrial lighting can meet mostapplications. Its polycarbonate housing is cast froma single mold and therefore absolutely dust andwaterproof. The flexible rust and corrosion freemounting clamps for wall / ceiling provides veryeasy installation.This modern and efficient tri-prooflight is the ideal lighting solution for factories andproduction areas, parking lots, corridors ,hallways,warehouses and storage rooms, stairways etc.
1.Highly energy efficient - up to 130 lm/w.
2.IP65 and IK10 for indoor and outdoor use under all conditions.
3.Easy installation to save labor costs.
4.Quick and easy installation.
5.3 years warranty.
| Basic Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T58-20W12 | 20W | AC100~277V 50~60Hz | 130±10 | 2600±200 | 120° | 96PCS SMD2835 | >80Ra |
| T58-30W12 | 30W | 130±10 | 3900±300 | 96PCS SMD2835 | |||
| T58-40W12 | 40W | 130±10 | 5200±400 | 128PCS SMD2835 | |||
| T58-40W15 | 40W | 130±10 | 5200±400 | 160PCS SMD2835 | |||
| T58-50W15 | 50W | 130±10 | 6500±500 | 160PCS SMD2835 | |||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >80 | ||
| Efficiency in % | >92% | Standard deviation of color matching | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <25 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 120° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 20~+69℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+40℃ |
| Safety features | Open circuit protection; short circuit protection ; overvoltage protection | Storage temperature | -40~+50℃ |
| Certificates | CE RoHS | ||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 5Years | Base/Socket | Directly wired | |
| Switching cycles | 100.000 times | Dimmable | / | |
| Lumen maintenance at e.o.l. | 70% | |||
| Packing Information | |||||
|---|---|---|---|---|---|
| Model | Dimension(MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T58-20W/30/40W12 | 55.3*43.3*1200 | 129.3*39.3*25.3 | 20PCS | 0.82 | 21.3 |
| T58-40W/50W15 | 55.3*43.3*1500 | 129.3*39.3*25.3 | 20PCS | 1.2 | 29.5 |

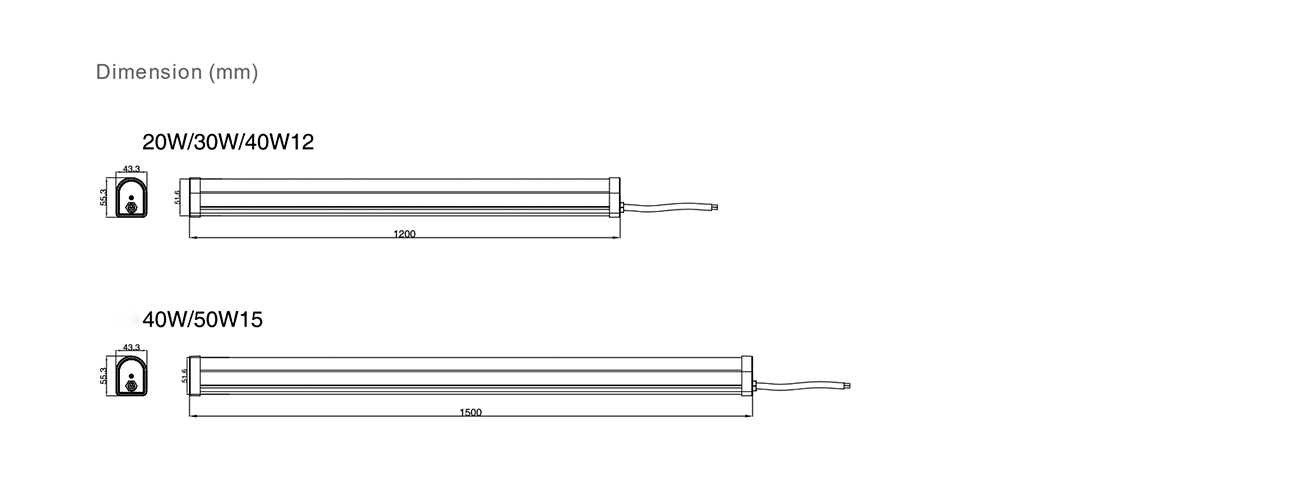

Production Size:

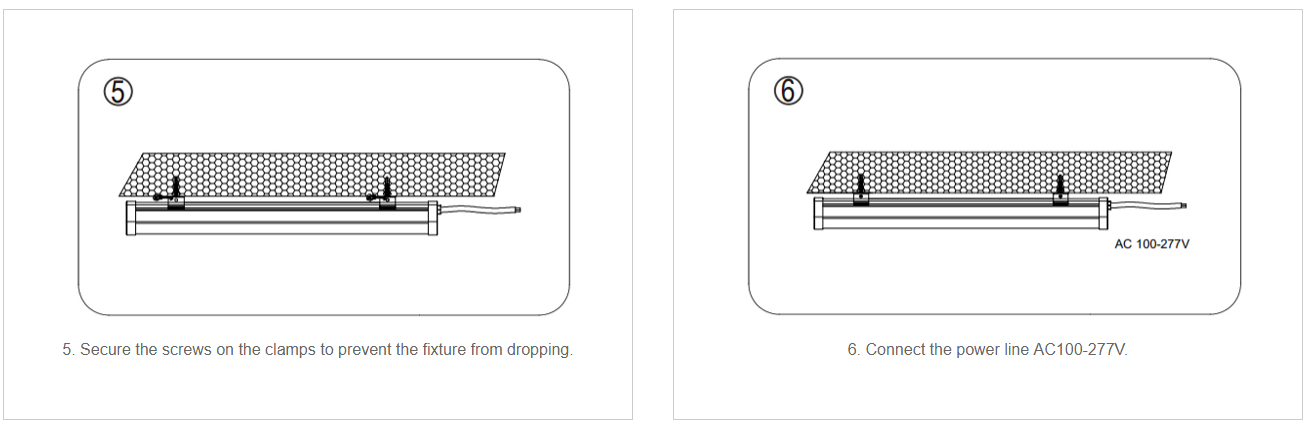

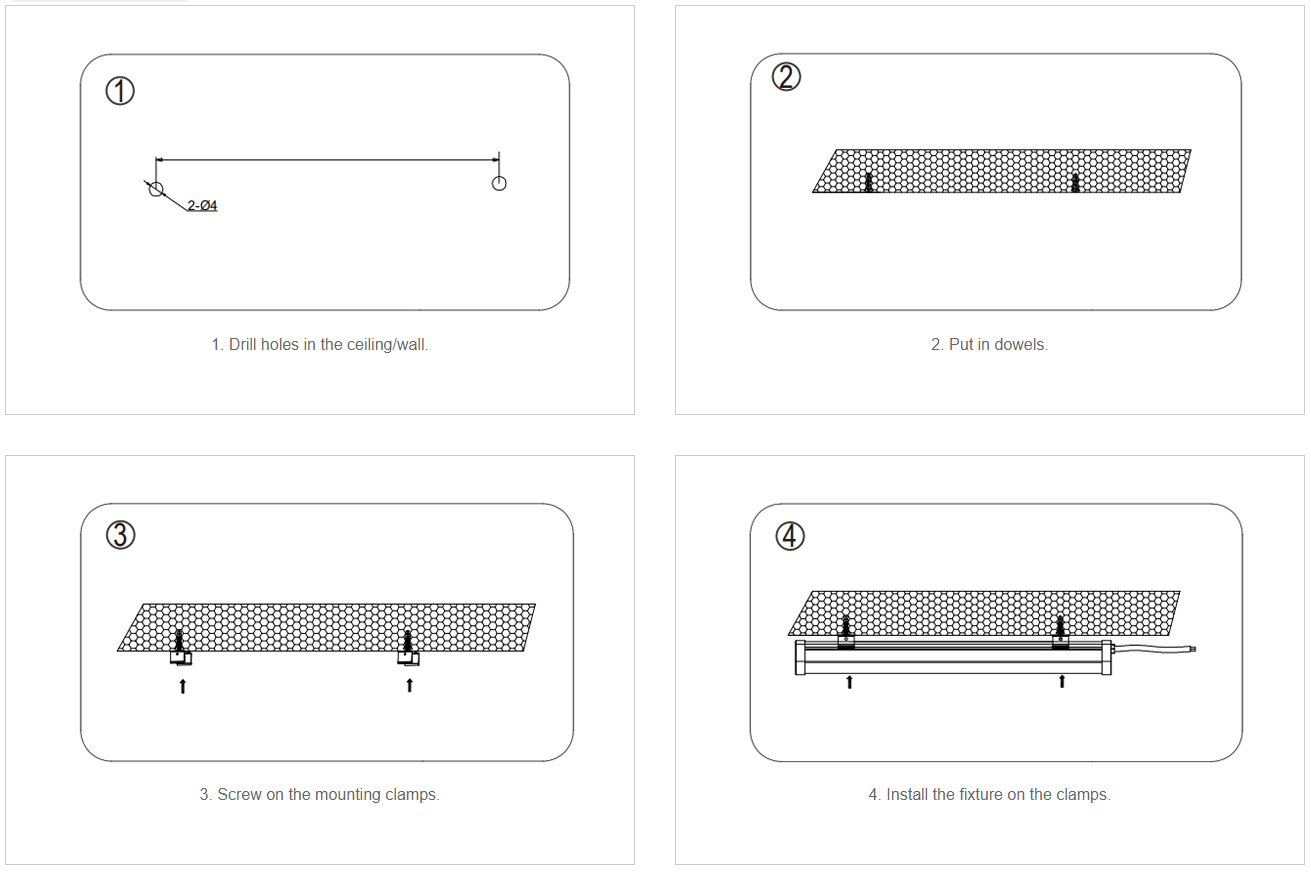

Installation:
Buy LED Tri proof light and enjoy durability that speaks volumes
What is the LED Tri proof light ?
LED Tri Proof Light products means water-proof, dust-proof, and corrosion-proof. And this will be through the anti-oxidation and anti-corrosion materials and the silicon seals.High durability since the double insulation of the connector clip makes sure the safety of the circuit. The silicon seals eliminate the dust and water entry.
This product is a durable and eco-friendly alternative lighting system to traditional fluorescent tubes. Also, the design of LED vapor light is to withstand severe environments and will help you reduce your energy consumption by up to 80%.
As well as, LED led tri-proof lights are specifically withstanding conditions susceptible to water, dust and corrosion impacts. C-Star tri proof led are Incredibly durable and long lasting, they are highly resistant to heavy impacts and can withstand temperature variations of up to 50°C.
How to choose the best LED tri-proof light ?
When it comes to equipping some facility with lighting fixtures, it’s always up to you to invest in high-performance products or deal with cheap, old-fashioned ones.Keep in mind, though, that your lights choice is likely to influence not only how well you can see surroundings but also your productivity and how much money you are going to pay for electricity.Is it worth compromising on your monthly output and spending several times more for utilities?
At C-Star, we don’t think so, which is why we offer you a variety of LED tri-proof lights that are designed to be suitable for the most extreme work environments, among others. Whether you are involved in food processing or have an auto wash, or for warehouse lighting, these luminaires will fit the bill. And here is why:
They are impervious to water.
Owing to the double insulation treatment and high-quality silicone seals,C-Star fixtures are resistant to liquid penetration. This enables you to use our waterproof LED tube lights for any applications involving direct exposure to water.
They cannot be affected by dust.
As you probably know, dust accumulation can cause lights loss and tube overheating. With our Luminaires, however, you can forget about the risks of this kind for good. Multiple coatings and seals protect our dust-proof LED lights from particle build-ups on the fixture surfaces.
They are resistant to corrosion.
Another reason why our tri-proof LED lights are the best options you could find for outdoor and indoor applications is that they are coated with anti-corrosion agents. This layer of protection ensures safe use and the longest lifespan of over 50,000 hours and offer 5 years warranty.
Count on the reputable LED tri-proof light & vapor light fixture manufacturer
If you need an excellent source of illumination for years to come, C-Star has got you covered! We’ve been working hard to make a name for ourselves as a leading manufacturer of waterproof LED tube lights for commercial and industrial applications.
As of now, our range is made up of top 2ft, 4ft, 8ft LED vapor lights fixture intended to be used for food, poultry, production, automotive, and many other industries. All our tri-proof lights come with flicker-free LED drivers and robust casings, so you are not supposed to pay for these add-ons.
Besides, every C-Star LED fixture is covered by the 5 years warranty, the period of which varies from product to product. Contact us to find out more details about our LED Tri proof light and get a price quote.
