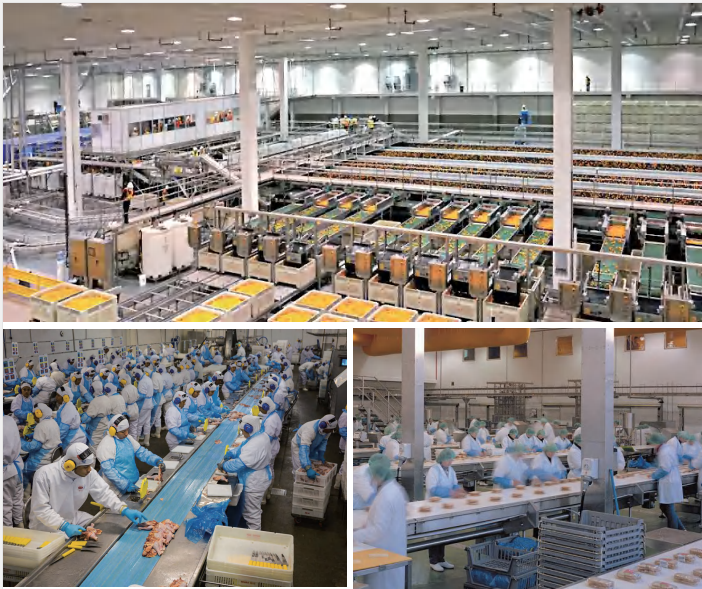

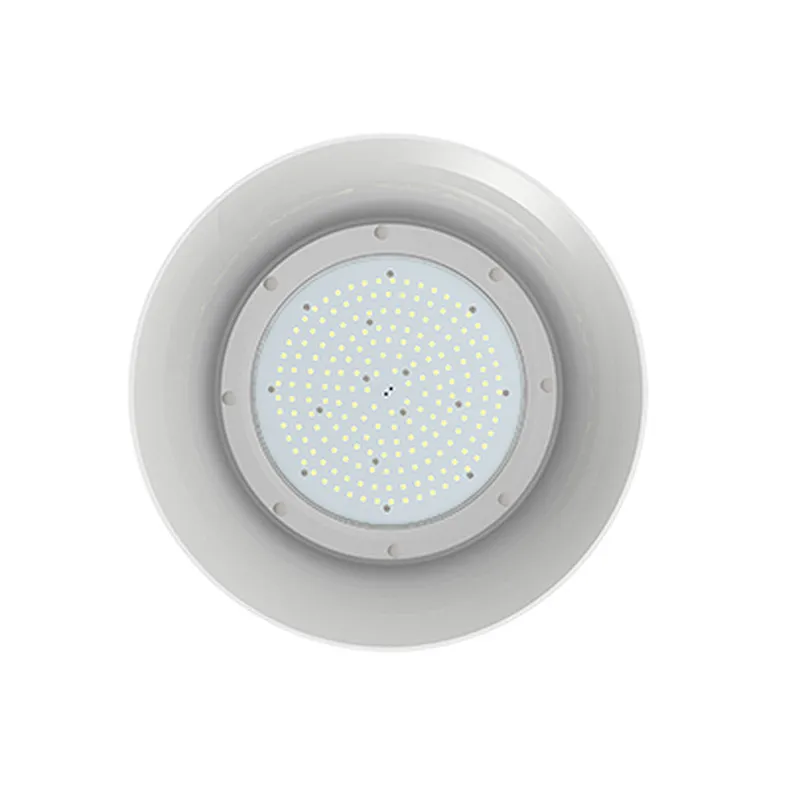

Food Safe Series pendant LED luminaires are engineered to address the requirements of the food processing industry and comply with FDA guidelines. The corrosion resistant and non-toxic aluminum exterior is completely smooth and easy to clean. Its IP69K ingress protection rating allows for usage in areas with high humidity and makes it wash down capable. The notably high system efficiency of up to 150lm/w will significantly reduce power costs and maximize your rebates for energy companies and government rebate programs. A full range of optional features like dimmable drivers, integrated motion sensors, Zigbee controllers and honeycomb reflectors further enhance the usefulness of this fixture..
1. Extremely energy efficient - up to 150lm/w
2. High Luminous flux - up to 28.000 lm

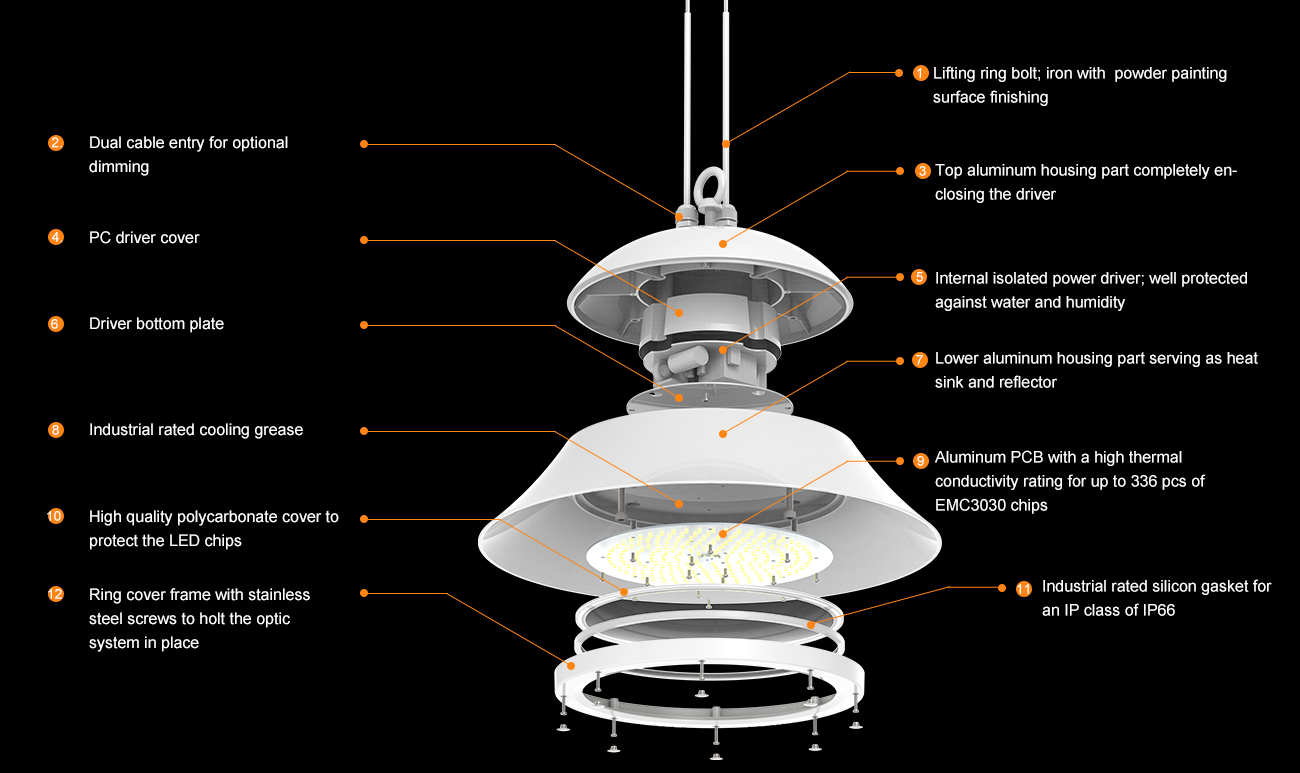

3. Unique internal thermal management structure
4. Non-toxic corrosion resistant aluminum exterior
5. Complete smooth surface for easy cleaning
6. IP69K rated for most environmental conditions
7. Suitable for high humidity, wash down capable
8. High quality polycarbonate optics
9. Notably low glare rating
10. No exposed hardware as per FDA regulations

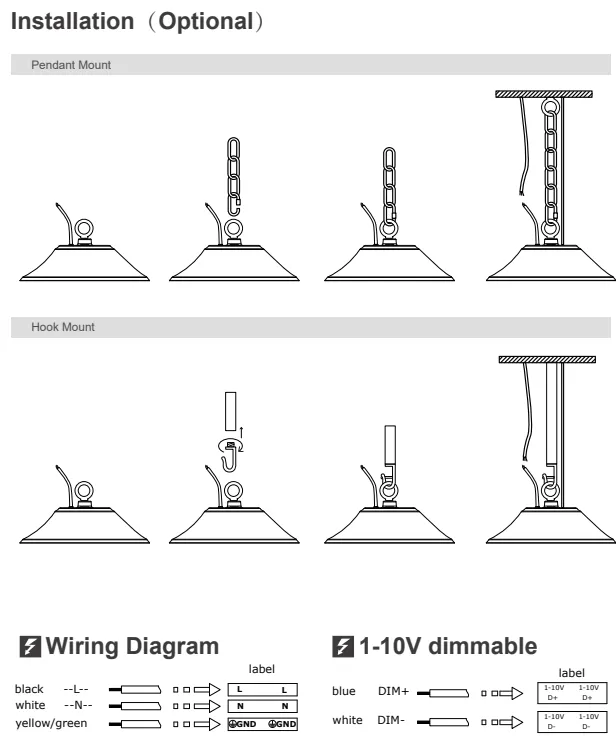

11. Dual cable entry for optional dimming
12. 5 years warranty
| Standard lumen (130~150lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| CS-HB10-60W | 60W | AC100~277V 50~60Hz | 130±10 | 7800±600 | 60°/110° | 112 PCS EMC 3030 | >80 |
| CS-HB10-100W | 100W | 130±10 | 13000±1000 | 196 PCS EMC 3030 | |||
| CS-HB10-150W | 150W | 130±10 | 19500±1500 | 252 PCS EMC 3030 | |||
| CS-HB10-200W | 200W | 130±10 | 26000±2000 | 336 PCS EMC 3030 | |||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >80 |
| Efficiency in % | >90% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <25 or <23 with Honeycomb Reflector |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | UGR (U nified Gl are Rating) | <23 |
| Warm-up ti me to 6 0 % (1.5s / 2s / … ) | 0.5S | Avail abl e beam angl es | 60°/110° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP69K | Heatsink temperature | -20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features | Open circuit protection; short circuit protection ; overvoltage protection | Storage temperature | -40~+80℃ |
| Certificates | European market: CE (EMC, LVD, RoHS), TUV, CB, D-Mark Australian market: SAA, C-Tick, RCM NSF Food Certificate | ||
| Energy efficiency class | A+&A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50,000hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable |
| Lumen maintenance at e.o.l. | 80% | ||
| LED Device Lifetime | L80/B10 | ||
| Packing Information | |||||
|---|---|---|---|---|---|
| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| CS-HB10-60W/100W | Φ360*180 | 43*43*24 | 1PCS | 4.2 | 6 |
| CS-HB10-150W/200W | Φ420*206 | 49*46*24 | 1PCS | 6 | 7.5 |
